IMAX B6AC

This item is for a rapid charger/discharger for all kind of battery of RC hobby, with built in balancer for lipo battery. Battery that can be charged by this charger, Lipo / Li-ion / LiFe / NiMh / NiCad / Pb / Lead Acid

Feature:

1. High-power and high-performance circuit

2. Microprocessor controlled

3. Maximum safety: Delta-peak sensitivity, Capacity limit, processing time limit, temperature limit, input power monitor

4. Monitoring the voltage of individual cell

5. Can charge Li-ion / LiPo / LiFe 1-6 cells, and Ni-Cd / NiMH 1 -15 cells

6. Dual Power, built-in AC adapter

7. Undefined large range of charge currents

8. Store function, allows safe storage current, and data storage (Store up to 5 packs in memory)

9. Battery break in and cycling

10. Built-in temperature sensor

11. Separate voltage detector for balance charge mode.

Description:

Color: Bright blue

Operation voltage range: DC 11.0 ~ 18.0 Volt or AC 100V ~ 240V 50/60Hz

Circuit power: AC to DC adaptor (DC 11.0 ~ 18.0V / 5A)

Max. Charge power 50W

Max. Discharge power 5W

Charge current range: 0.1~5.0A

Discharge current range: 0.1~1.0A

Current drain for balancing Li-Po: 300mAh/cell

NiCd / NiMH battery cell count: 1~15 cell

Li-Ion / Polymer cell count: 1~6 series

Pb battery voltage: 2V~20V

Weight: 546g (Net Weight)

Dimensions: 136 x 141*34mm

Package weight: 778g

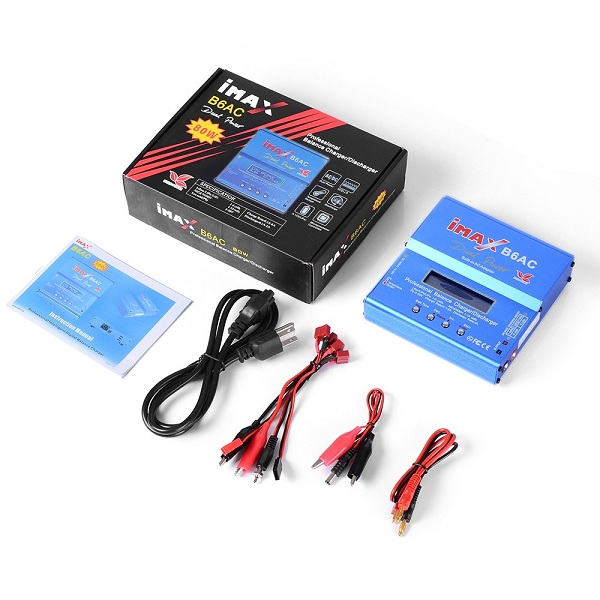

Packing included:

1 * IMAX B6AC LiPo battery balance charger (Built in Power Supply)

1 * 100 - 240V Power Supply wire

1 * English manual
